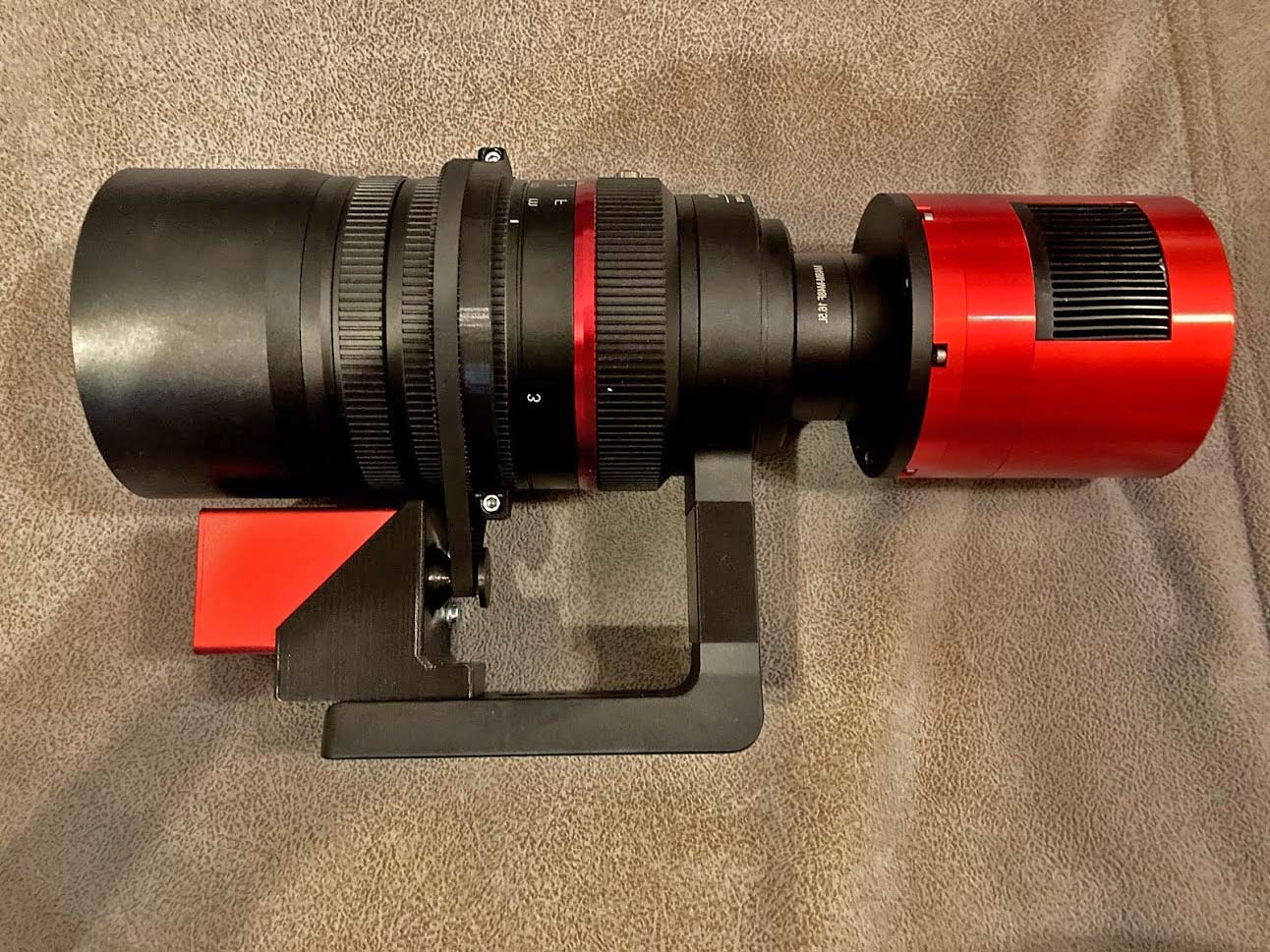

With the aluminium extension block, we raised the ACL200 just high enough, to snugly fit the EAF motor between the lens and the dovetail. This results in a balanced, compact solution.

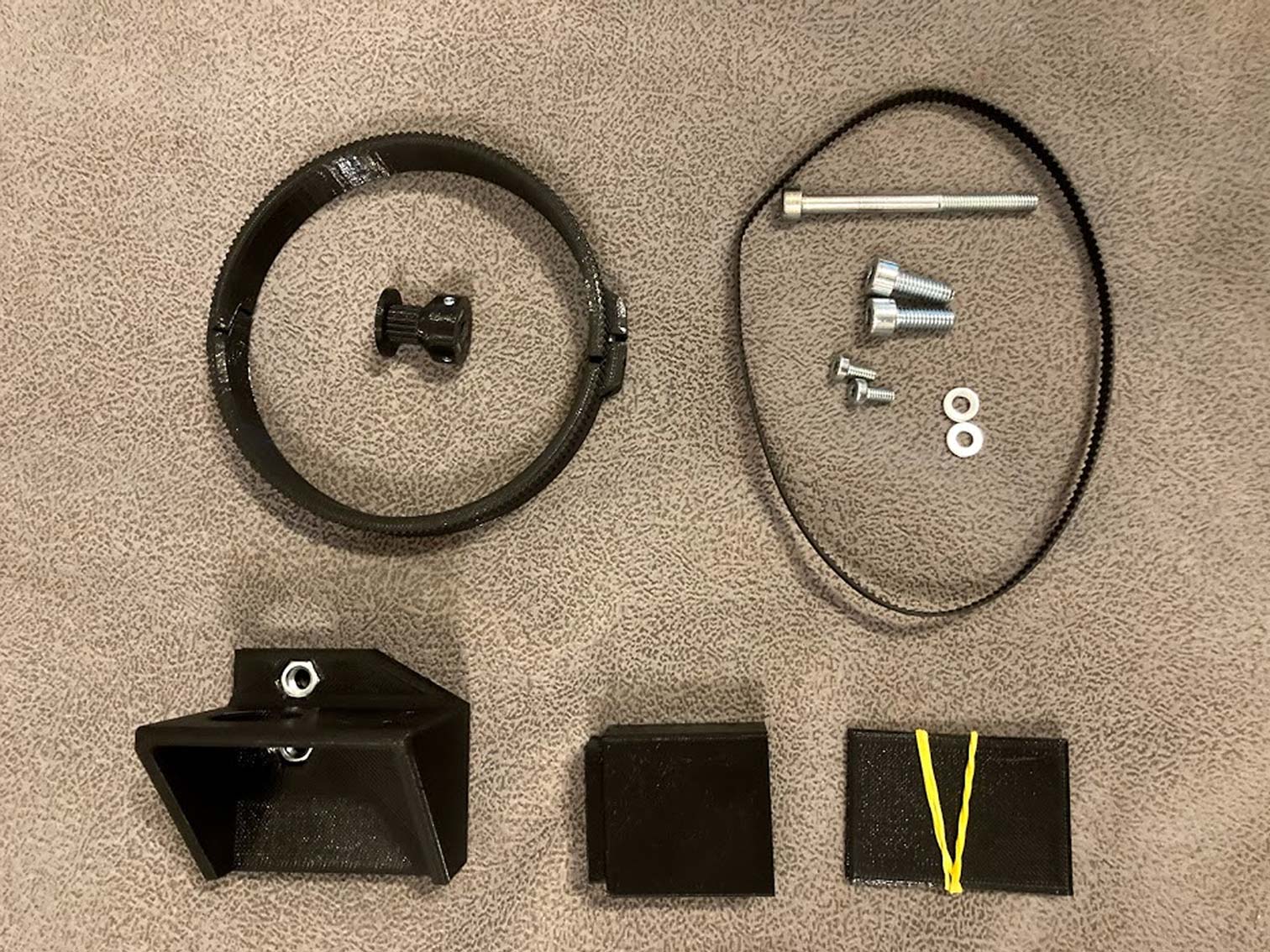

You are getting:
- 1x 3D printed mounting plate
- 1x 3D printed 16T MXL pulley
- 1x 3D printed helical focuser MXL ring
- 2x 3D printed mounting plate spacers for tension adjustment
- 1x MXL timing belt
- 2x 10mm M3 bolt (for ring)
- 2x 8mm M4 bolt (for attaching EAF to mounting plate)
- 2x 16mm M6 bolt (for attaching mounting plate to the dovetail)
- 1x 60mm M5 bolt (for attaching dovetail and extension block)
- 1x ALU extension block
