AF3s Askar 200mm dovetail kit

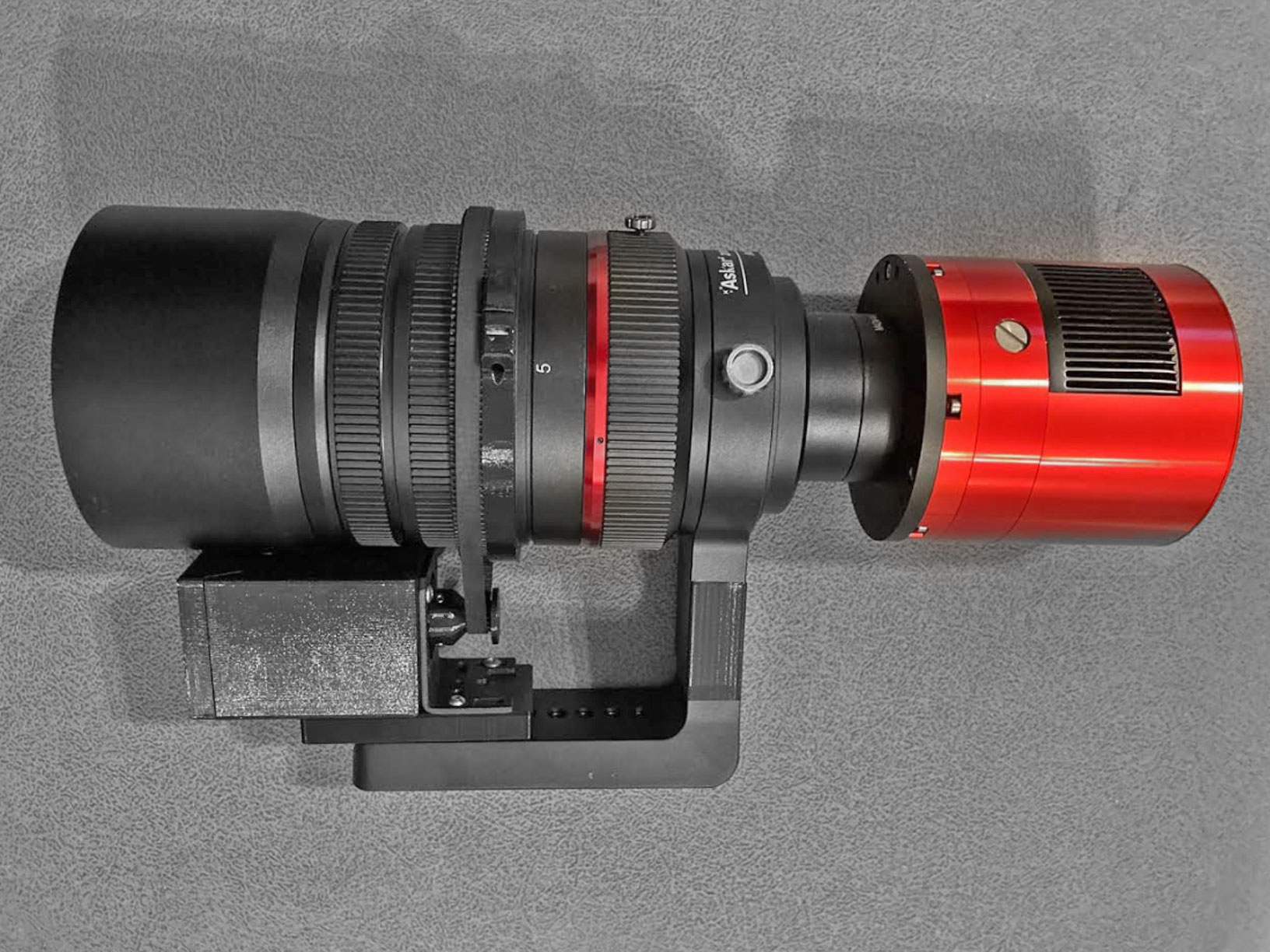

With the aluminium extension block, we raised the ACL200 just high enough, to snugly fit the AF3 motor between the lens and the dovetail. This results in a balanced, compact solution.

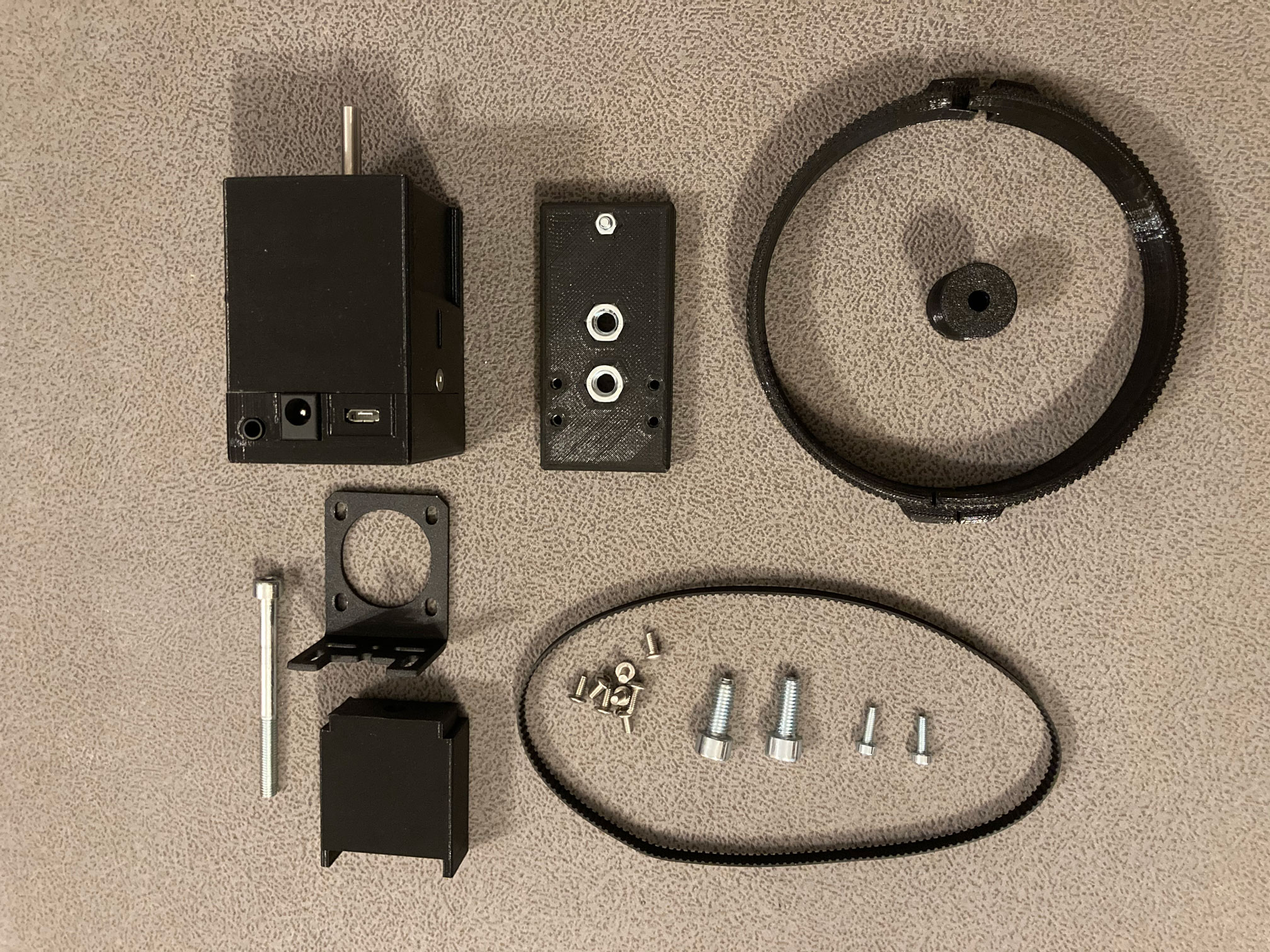

You are getting:


OPTION: temperature sensor
OPTION: remote controller

  • 1x AF3s unit
  • 1x 3D printed mounting plate
  • 1x 3D printed 16T MXL pulley
  • 1x 3D printed helical focuser MXL ring
  • 1x MXL timing belt
  • 8x 6mm M3 bolt (for mounting the motor to the plate/L bracket)
  • 2x 10mm M3 bolt (for ring)
  • 2x 16mm M6 bolt (for attaching mounting plate to the dovetail)
  • 1x 60mm M5 bolt (for attaching dovetail and extension block)
  • 1x ALU extension block
Order
assembly instructions
